MARKETING INFORMATION

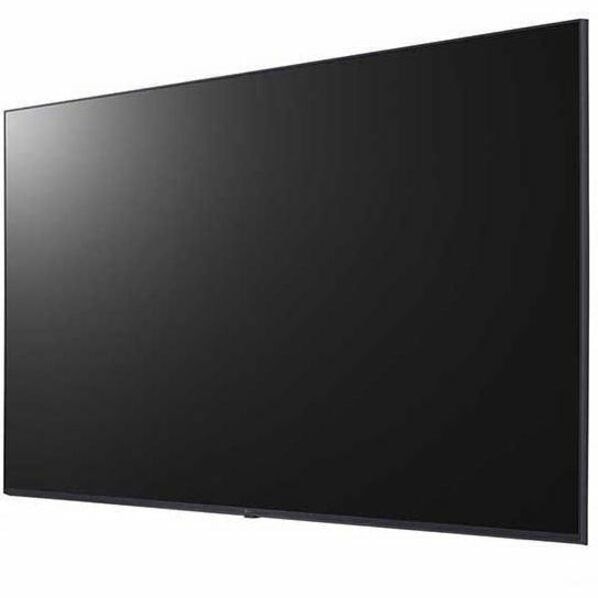

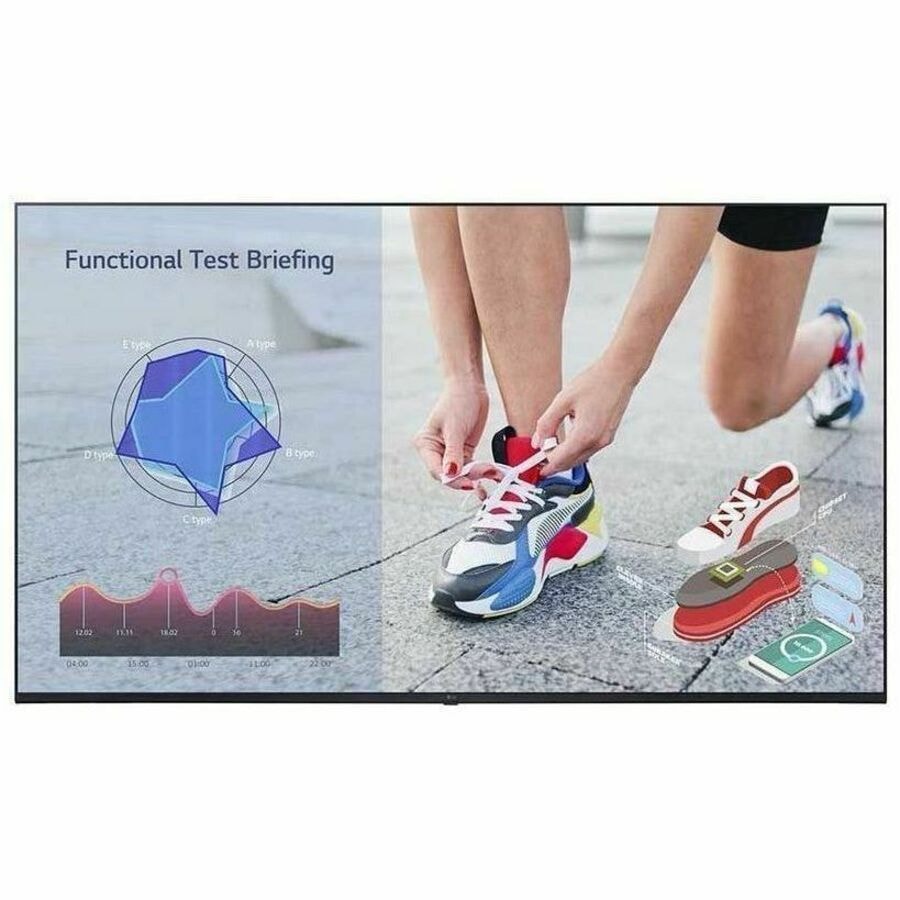

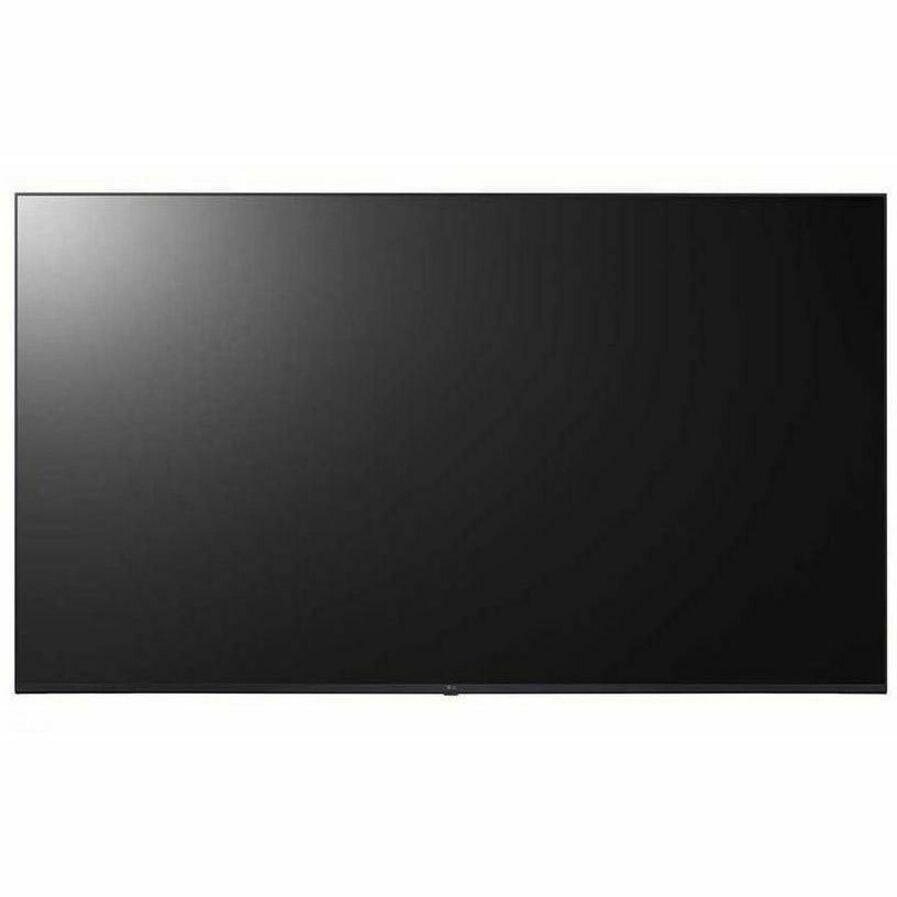

LG webOS™ UHD Signage | Superb Picture Quality with Ultra HD Resolution

Ultra-HD resolution (3,840 x 2,160) and LG's IPS screen technology combine to deliver content with rich color and detail for a realistic image. IPS screens also provide a wide viewing angle for off-axis viewing

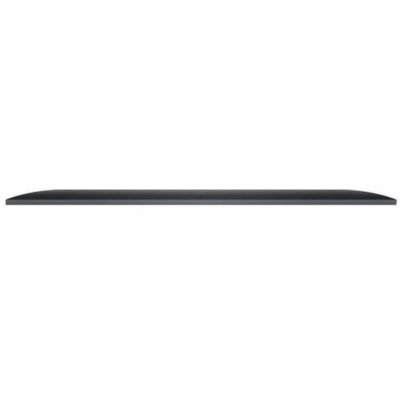

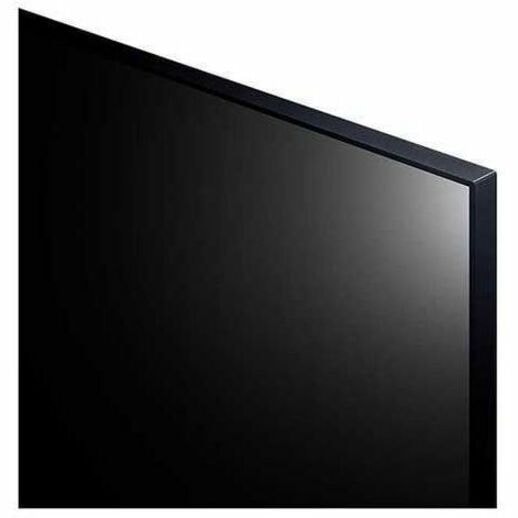

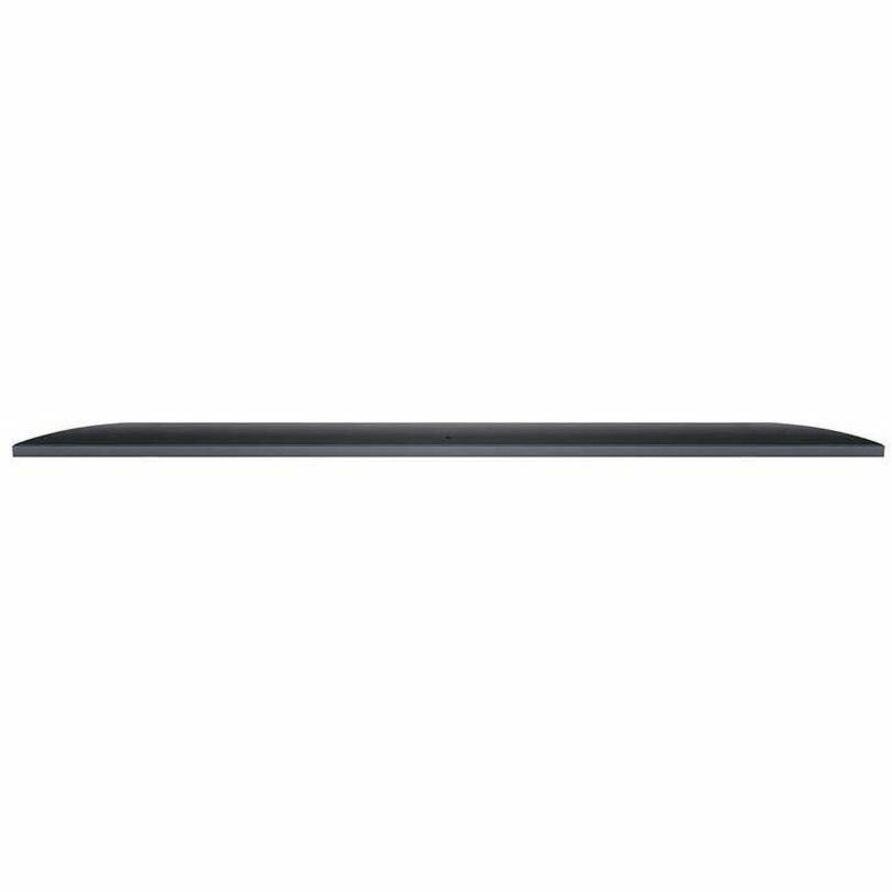

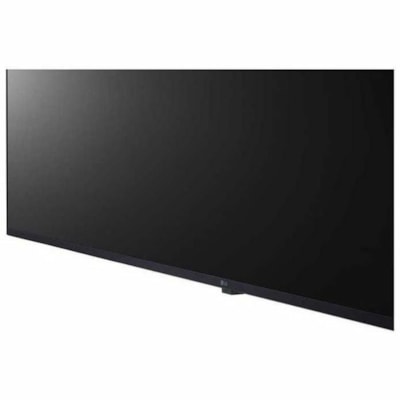

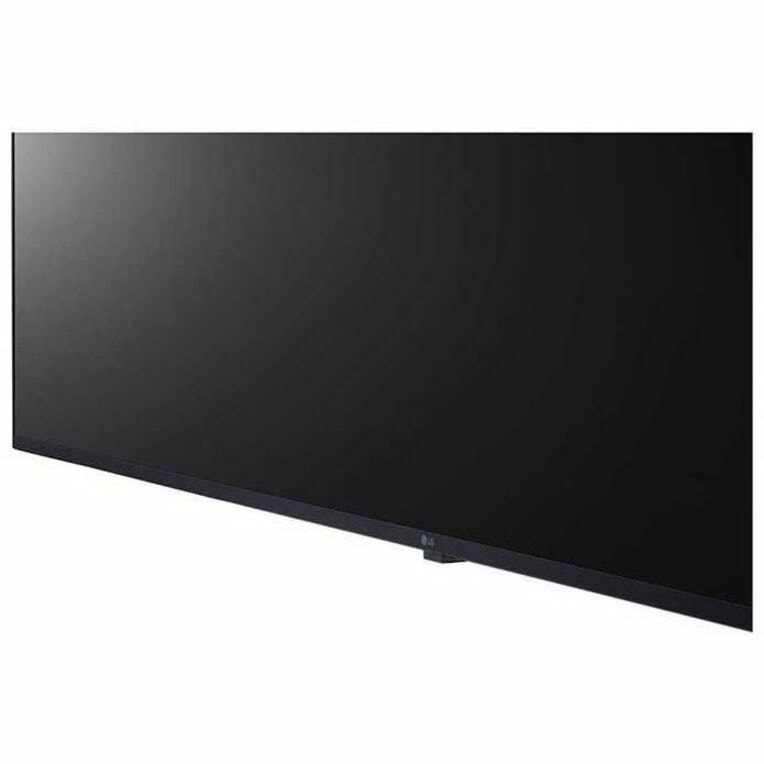

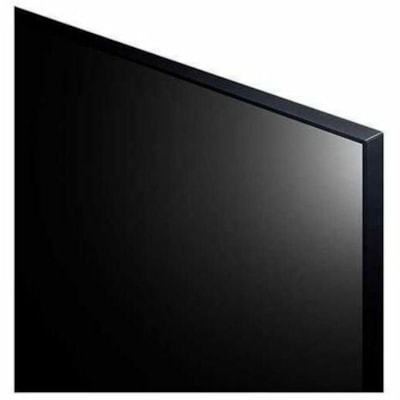

Sophisticated Slim Design

A sleek, sophisticated design provides an immersive viewing experience and enhances the overall room décor. Its thin bezel size and thickness also saves space and enables easy installation.

High-Performance with LG webOS™ 6.0

The UL3J series features LG's webOS™ 6.0 with an upgraded in SoC and web engine, providing smooth execution of several tasks. LG webOS smart signage platform provides enhanced user convenience with an intuitive GUI.

Various Sensor Connection

LG webOS™ smart signage platform helps to provide value-added solutions by supporting simple connections with external sensors via USB plug-in, such as GPI0, NFC/RFID, temperature sensors, and more.

Compatible with LG's Wireless Screen Sharing Solution, LG One:Quick Share

LG 0ne:Quick Share is a USB wireless screen sharing solution. Its USB dongle button and embedded Wi-Fi allow you to share a PC screen to the display and adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode helps you display a meeting agenda and notes before the meeting starts.

Remote Monitoring and Control

A user-friendly web-based monitoring solution enables the user to have full access to the display anywhere at any time from their mobile phone & PC under a network-accessible environment while having access to both current and past data. It also allows the user to monitor the display, make adjustments and control the unit remotely in real-time.

Compatible with AV Control Systems

For added efficiency, the UL3J series supports Crestron Connected for compatibility with professional AV controls to achieve virtually seamless integration and control.

Video Conference System Compatibility

For compelling video conferencing, the UL3J series is compatible with Cisco solutions that offer robust and integrated control for an intelligent video conference.

Easy Menu Setup For Vertical Needs

UL3J series organizes commonly used menus* by industry, making it convenient for users.

Built-in Speaker

Built-in speakers eliminate the need for external speakers and deliver clear, crisp sound.

Easy Content Distribution & SW Update

UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update firmware under the same network.

Wireless Access Point

UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Service

Maintenance is easy and fast with the optional LG ConnecedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and provides remote-control services that support the stable operation of clients' businesses.

Epeat Registered

The Electronic Product Environmental Assessment Tool (EPEAT) is a method to evaluate the effect of a product on the environment. UL3J is EPEAT Bronze certified display which means that it meets all the required criteria in Computers and Displays category.

DETAILS

• Panel Technology : In-plane Switching (IPS) Technology
• Operation Hours : 16 Hours/ 7 Days
• On Screen Display (OSD) Languages : English,Arabic,Simplified Chinese,Czech,Danish,Dutch,Finnish,French,German,Greek,Italian,Japanese,Korean,Norwegian,Brazilian Portuguese,Russian,Spanish,Swedish,Turkish
• Standard Memory : 8 GB
• Number of Screens : 1
• Viewable Screen Size : 55" (1397 mm)
• Display Screen Type : LCD
• Response Time : 8 ms
• Display Resolution : 3840 x 2160
• Orientation : Landscape/Portrait
• Backlight Technology : Direct LED
• Aspect Ratio : 16:9
• Maximum LED Life : 3.4 Year
• Speakers : Yes
• Scan Format : 2160p
• Native Contrast Ratio : 1,200:1
• Dynamic Contrast Ratio : 1,000,000:1
• Brightness : 400 cd/m²
• Color Gamut : 80% DCI
• Wireless LAN : Yes
• USB : Yes
• HDMI : Yes
• Audio Line Out : Yes
• Serial : Yes
• Number of USB 2.0 Ports : 2
• Number of HDMI Inputs : 3
• RS-232C Input : Yes
• RS-232C Output : Yes
• Digital Audio Optical Output : Yes
• Operating System : webOS 6.0
• Input Voltage : 120 V AC,230 V AC
• Off-Mode Power Consumption : 500 mW
• Bezel Color : Navy Blue
• VESA Mount Compatible : Yes
• VESA Mount Standard : 300 x 300
• Height : 28.15" (715 mm)
• Width : 48.62" (1235 mm)
• Depth : 2.26" (57.50 mm)
• Weight (Approximate) : 30.86 lb (14000 g)
• Minimum Operating Temperature : 32°F (0°C)
• Maximum Operating Temperature : 104°F (40°C)
• Minimum Operating Humidity : 10%
• Maximum Operating Humidity : 80%
• Package Contents :

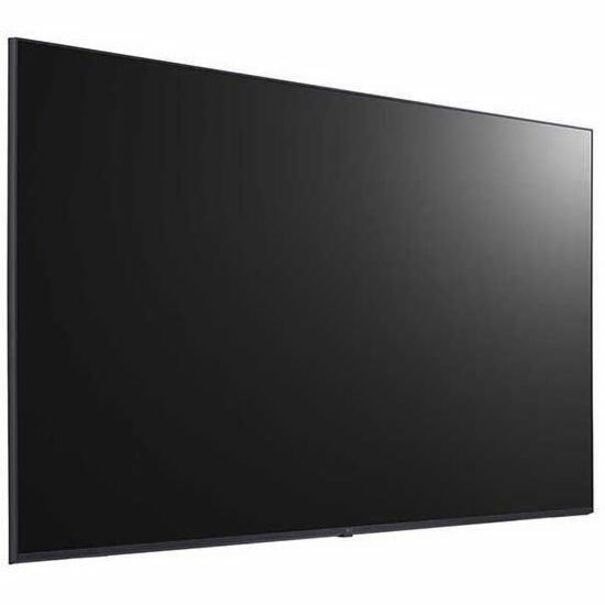

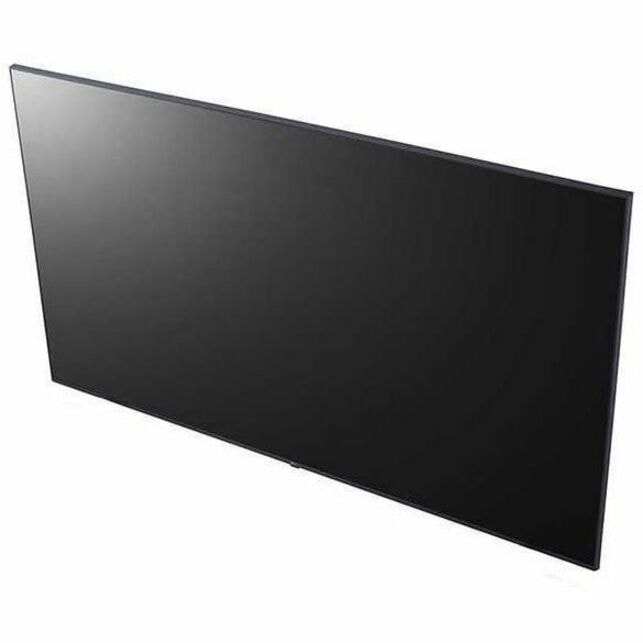

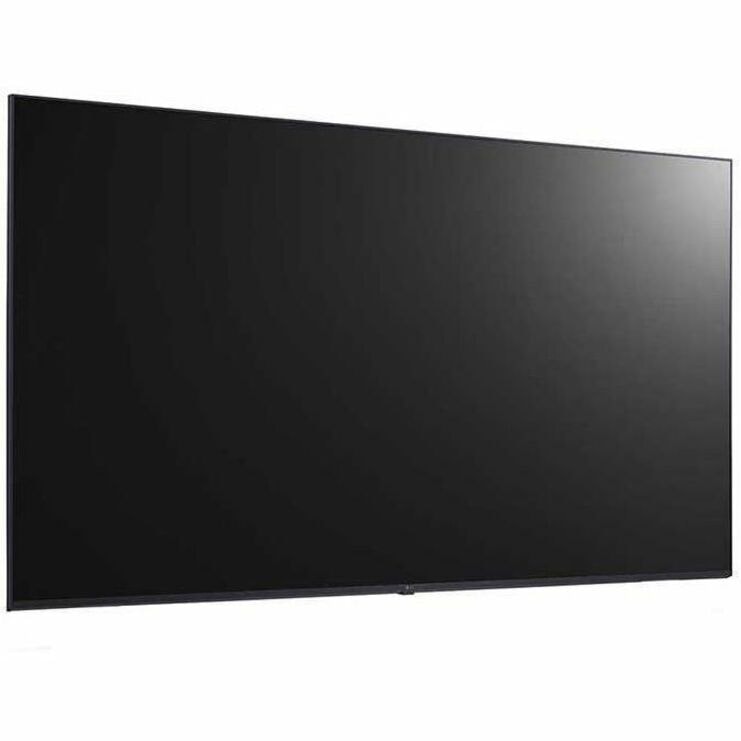

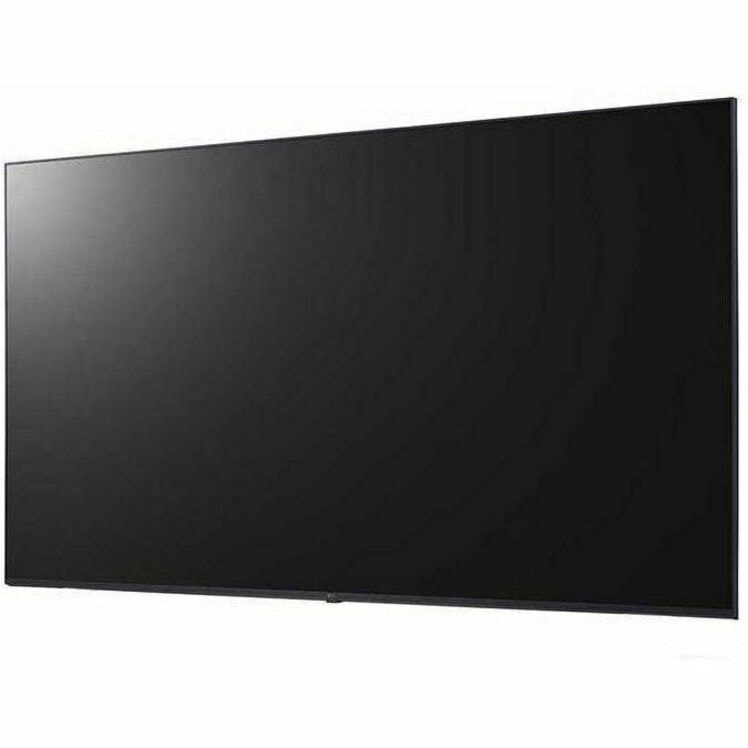

• 55UL3J-M Digital Signage Display
• Remote Control (w/ 2 batteries)
• Power Cord
• Regulation Book
• Phone to D-Sub9 Adapter
• Cable Holder
• Application/Usage : Business,Meeting Room,Retail,Government,Corporate
• Energy Star : Yes
• Environmentally Friendly : Yes
• Environmental Certification : Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
• Energy Efficiency Compliance : Energy-related Products Directive (ErP)
• Limited Warranty : 3 Year

• Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
• Experience luminescent visual images with LCD display
• 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
• Engages your customers and makes their viewing experience breathtaking with its 2160p content
• Direct LED backlight technology for a consistent picture quality from corner to corner
